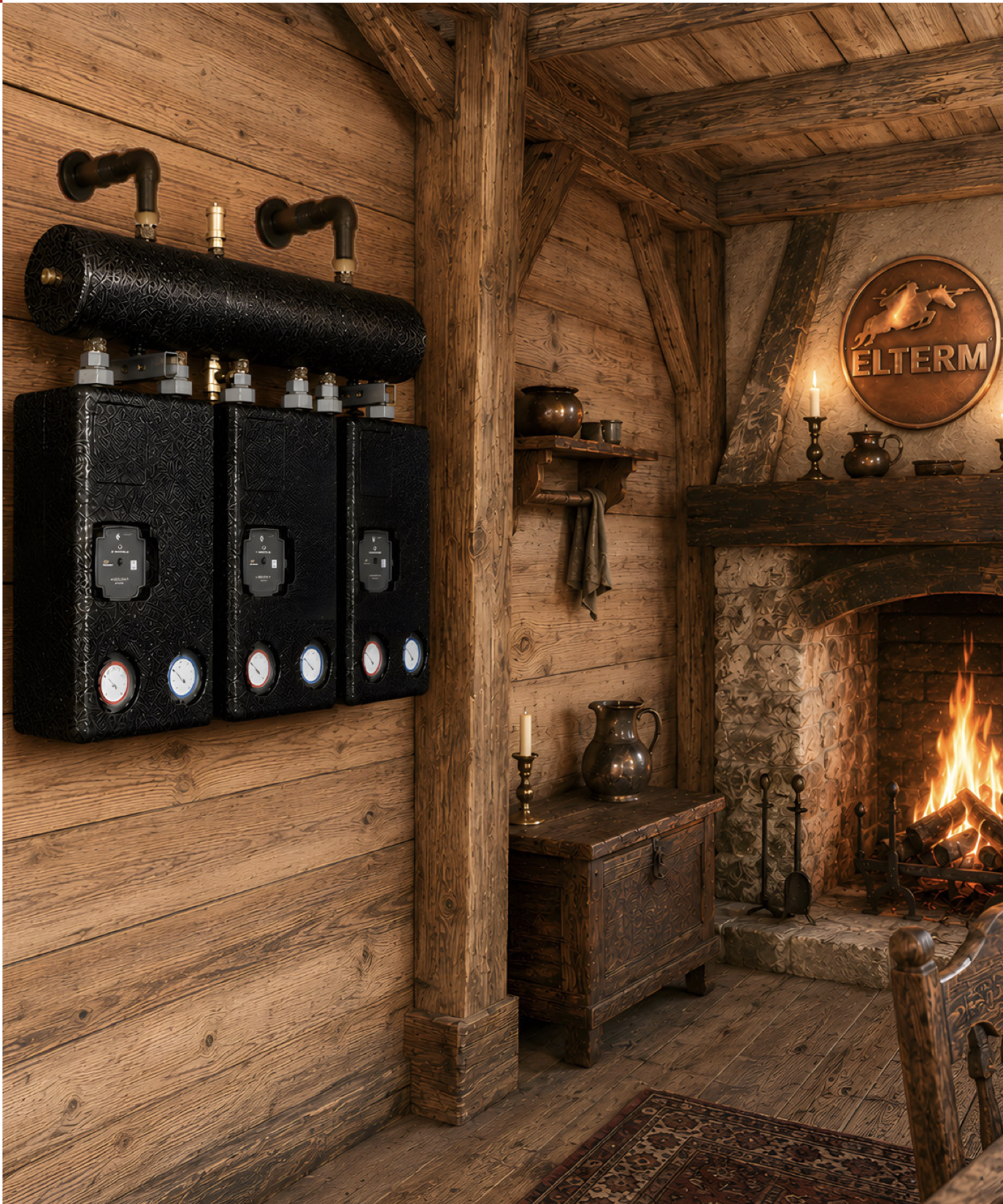

Distribution Low Loss Header SKE 55kW, 3DC set + 2 x universal pump group for water cylinder, 1 x VRG 432 pump group with progresive valve and ARA actuator for radiators

Condensing Distribution Low Loss Header 55kW kW 8 TAPPINGS - HORIZONTAL/VERTICAL

Horizontal SKE distribution low loss headers (hydraulic balancers) – 2-way basic versions
Distribution low loss header (SKE) separates the boiler cycle from the heating cycle. SKEs are usually applied in medium or high power rating heating systems (practically, from 25 kW upwards), comprised of one or more boilers, particularly those comprised of several heating cycles (e.g. floor heating cycle + radiator heating cycle + hot utility water heating cycle). Application of a hydraulic unit in these types of cycles eliminates the necessity to balance pump flows – SKE enables independent operation of individual cycles and uninterrupted pump performance (no pump interference). Another important feature is its desilting and venting capability. Moreover, thanks to inserted neodymium magnet separator (SMART), it stops tiny magnetic shards from being spread into the whole system, something which is directly responsible for causing rust and corrosion. Following versions: SKE 55 3DC and 90 3DC - protect solid fuel boilers from too low return water temperature.

Horizontal/vertical, SKE distribution low loss headers - 3-way condensing version.

Distribution low loss header separates the boiler's circuit from the heating circuit. DLLH are usually applied in medium or high power rating heating systems (practically, from 25kW upwards), comprised of one or more boilers, particularly those comprised of several heating circuits (e.g. floor heating circuit + radiator heating circuit + hot utility water circuit). In condensing version, additional built-in INOX partition/guide significantly separates hot and cold water flows. As a consequence, return and water temperature is reduced, helping condense devices to reach higher efficiency. Moreover, thanks to built-in neodymium magnet separator (SMART) it stops tiny magnetic shards from being spread into the whole system, something which is directly responsible for causing rust and corrosion.

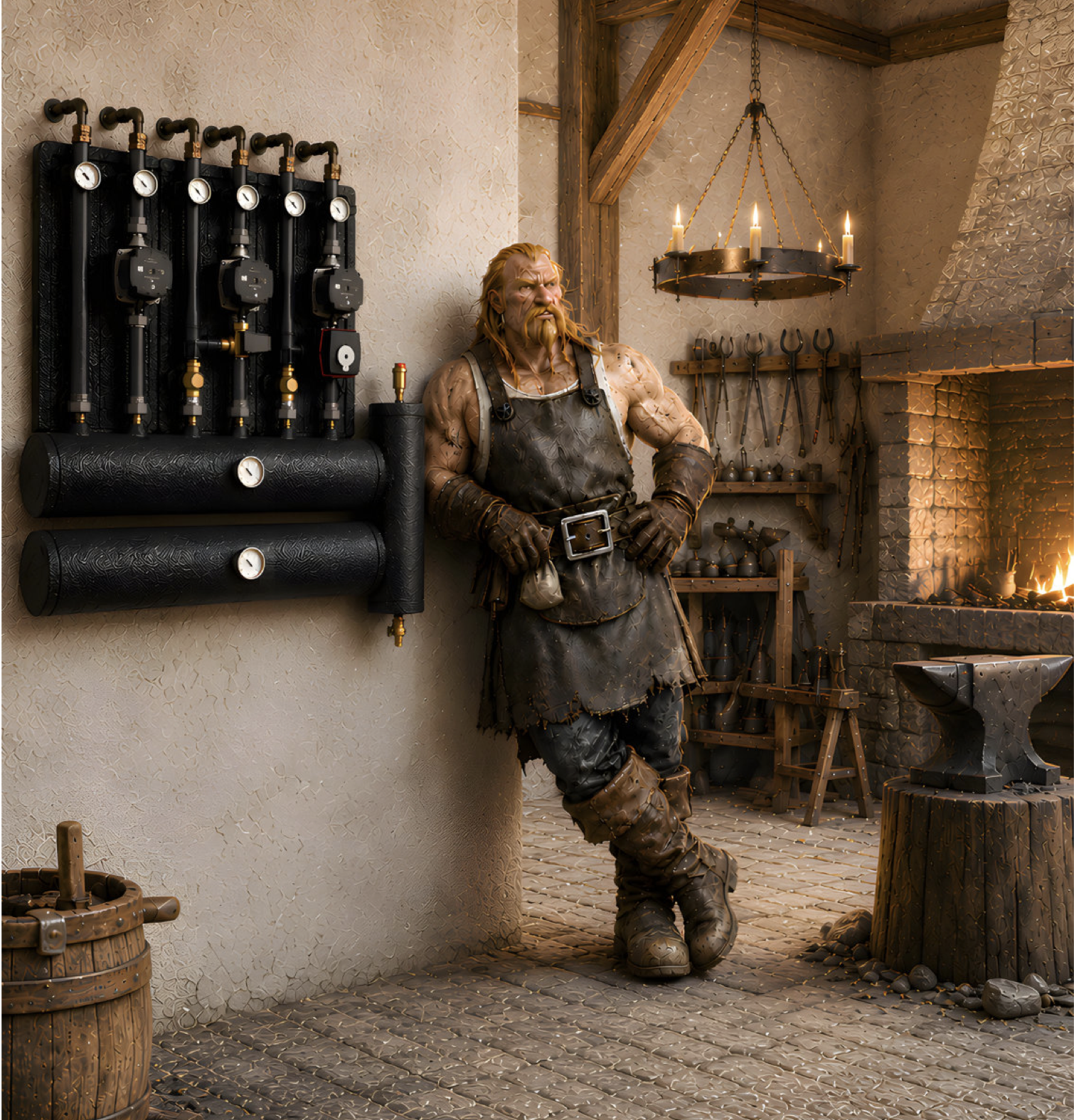

                                   PUMP SETS FOR VERTICAL/HORIZONTAL INSTALLATIONS

In a pump set for vertical installation, customers can use SKE 55 3DChorizontal distribution low loss header (any 3 out of 18 available) of pump groups (pump stations). All items are insulated with EPP and can also be purchased separately. We can combine these units in as many combinations as possible to get the required by engineer set prepared.
