Set of distribution low loss header + 2 x universal pump groups, insulated PRO
Horizontal/VERTICAL, SKE distribution low loss headers - 2-way condensing version - PRO
Distribution low loss header separates the boiler's circuit from the heating circuit. DLLH are usually applied in medium or high power rating heating systems (practically, from 25kW upwards), comprised of one or more boilers, particularly those comprised of several heating circuits (e.g. floor heating circuit + radiator heating circuit + hot utility water circuit). In condensing version, additional built-in INOX partition/guide significantly separates hot and cold water flows. As a consequence, return and water temperature is reduced, helping condense devices to reach higher efficiency. Moreover, thanks to built-in neodymium magnet separator (SMART) it stops tiny magnetic shards from being spread into the whole system, something which is directly responsible for causing rust and corrosion.

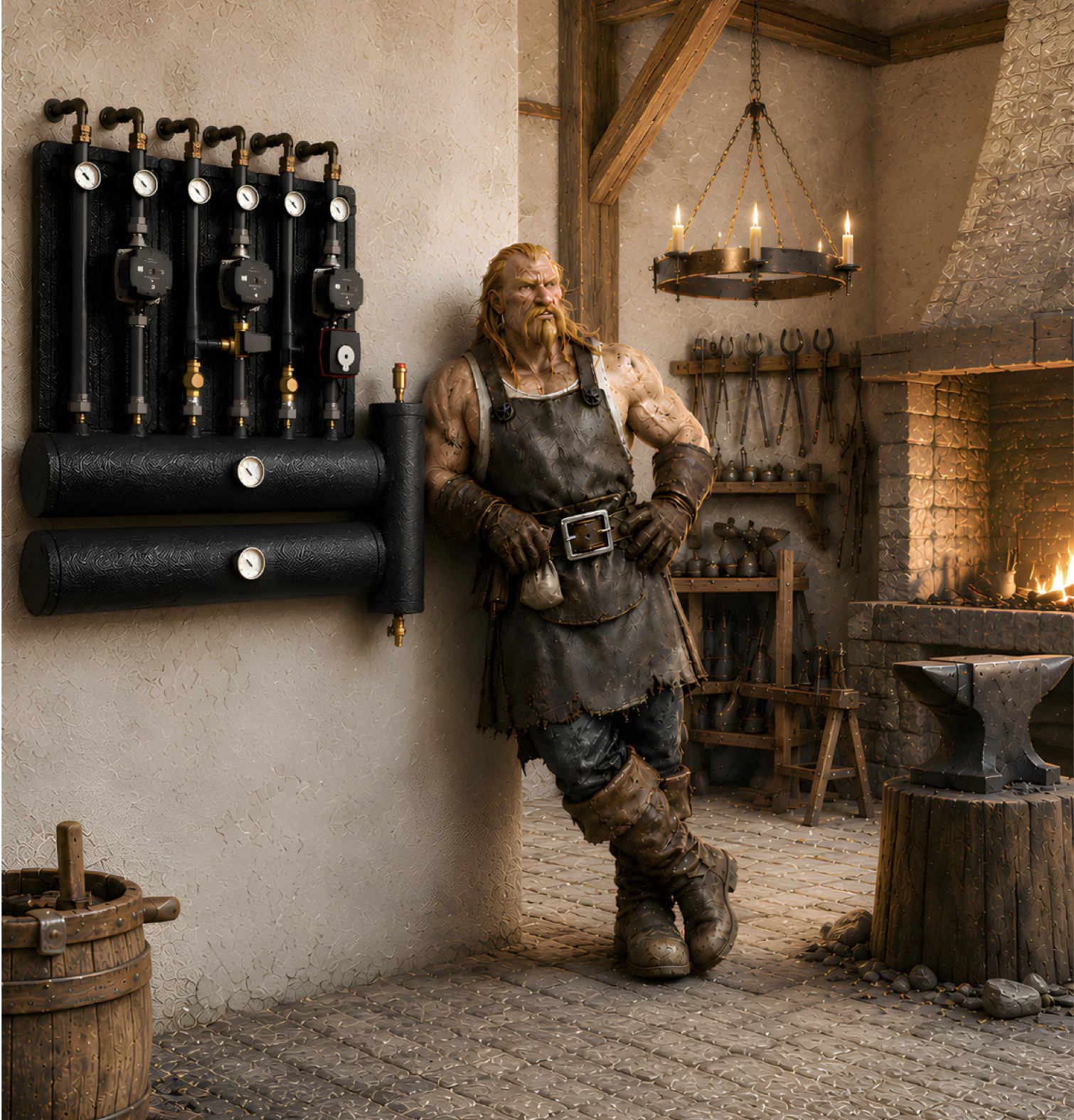

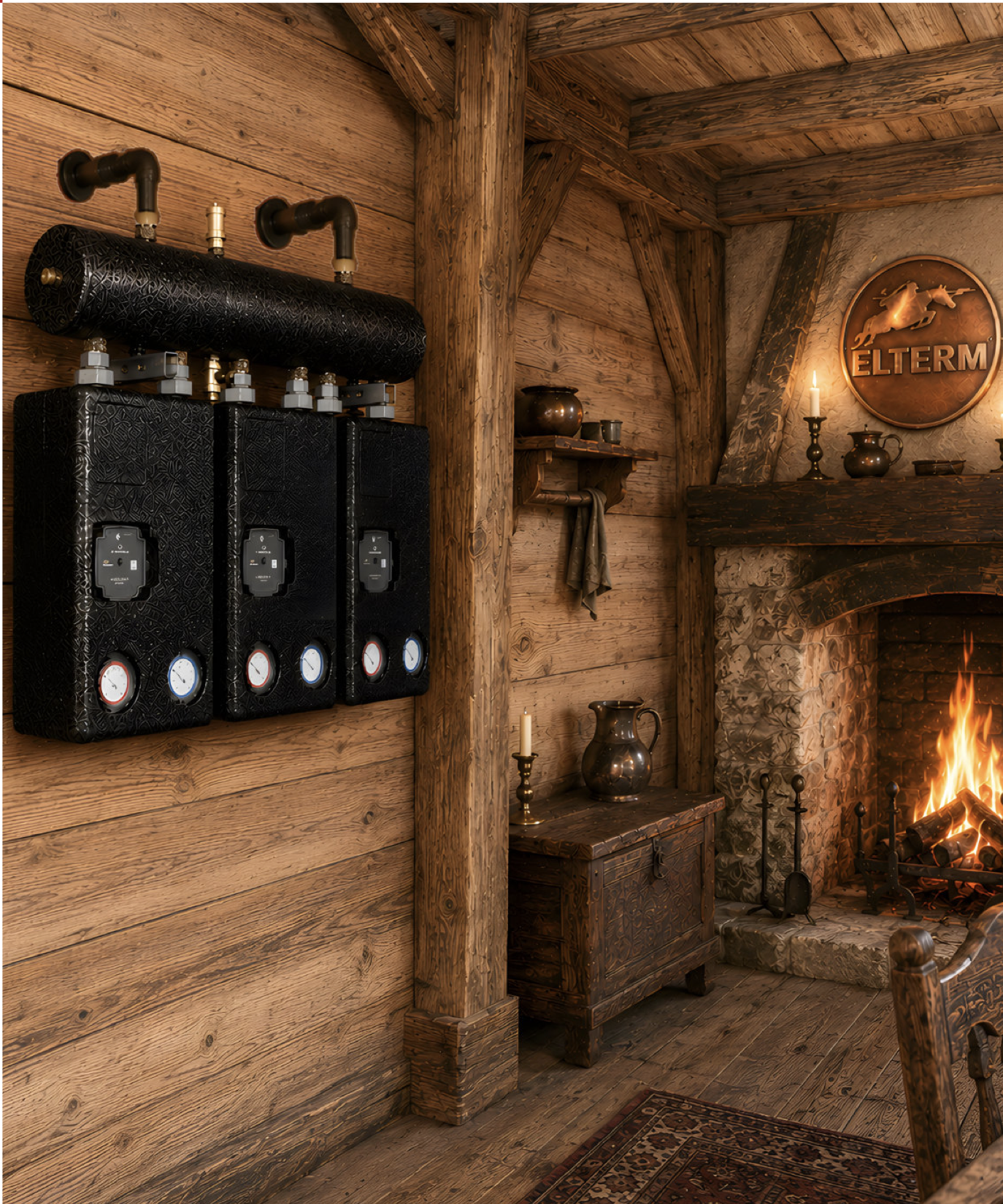

PUMP SETS FOR VERTICAL/HORIZONTAL INSTALLATIONS
In a pump set for vertical installation, customers can use SKE 55 2DC+horizontal distribution low loss header (any 2 out of 18 available) of pump groups (pump stations). All items are insulated with EPP and can also be purchased separately. We can combine these units in as many combinations as possible to get the required by engineer set prepared.
Pump groups marked PRO are shorter than standardised version and higher in weight.
